Opening Ports Bring in Fresh Air without the waterfall

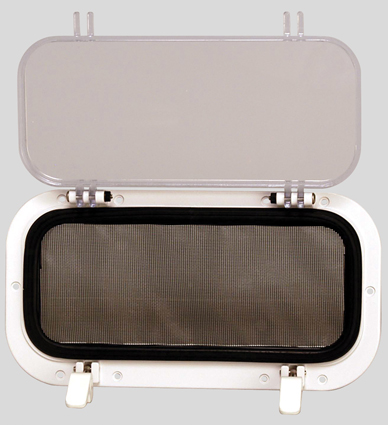

Fresh air enhances the indoor environment of a boat cabin. Beckson's reliable Newport Opening Ports add ventilation to any vessel. They're offered in two models, Self Drain and Rain Drain.

The Beckson Self Drain Opening Port is innovatively designed with an angled drainage ramp molded on the inside of the spigot. This design promotes drainage without having the hassle of making angled cuts in the hull. This also allows for thru-bolting, which is impossible in windows where an angled spigot extends below the bolt holes. The internal angle seats tightly against the gasket and lens, so there's no water-fall when the port is opened after a rain. Self Drain Opening Ports are ideal for mounting where installation is within 15° of vertical.

Designed primarily for installation where cabin sides have excessive angles and other ports would collect rain and spray, the Rain Drain Opening Ports, cut at 5/8", will drain while tipped back up to 45° degrees. Unlike others, Beckson Rain Drain Ports have open drains, which resist clogging and are easy to clean.

Fresh air enhances the indoor environment of a boat cabin. Beckson's reliable Newport Opening Ports add ventilation to any vessel. They're offered in two models, Self Drain and Rain Drain.

Both styles come in standard 1" or 2" spigot lengths, sized from 3" x 10" to 7" x 14". Spigots should be trimmed flush after installation for best drainage. Beckson's Opening Ports retail from $123.
